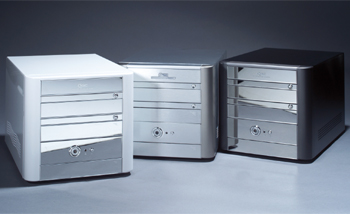

Soltekův barebone na základní desce s logikou NVIDIA nForce3 250Gb

Length (cm)

33

Width (cm)

21.50

Height (cm)

20

Front Panel

Aluminum / Mirror

5.25 inch Bays

2

3.5 inch Bays

2 (one internal)

Front Panel I/O

• 2 x USB 2.0/1.1 Ports.
• 1 x Mic-In Port.
• 1 x Line-Out Port.
• 1 x IEEE1394a Port.
• 1 x S/PDIF Out Port.

Back Panel I/O

• 2 x Serial Ports.
• 1 x PS/2 Keyboard Port.
• 1 x PS/2 Mouse Port.
• 4 x USB 2.0/1.1 Ports.
• 1 x Gigabit 10/100/1000 LAN Port.
• 1 x IEEE1394a Port.
• 1 x Line-In Port. (Blue)
• 1 x Front-Out Port. (Green)
• 1 x Front Surround-Out Port. (Gray)
• 1 x Center-Sub Woofer-Out Port. (Orange)
• 1 x Rear Surround-Out Port. (Black)

Power Supply

250W (PFC)

Other Features

--

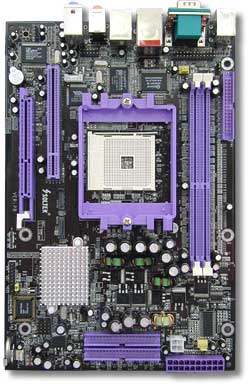

MAINBOARDS:SL-B9A-FGR

CHIPSET VENDOR:

nVIDIA

CHIPSET

nVIDIA nForce3 250 Gb

Processor:

AMD Socket 754 on board.

Front Side Bus:

1.6GHz Front Side Bus.

MEMORY:

• 2 x 184-pin DDR DIMM Sockets.
• Supporting unbuffered non-ECC DDR 400/333/266 DRAM up to 2GB.

Expansion Slots:

• 1 x AGP 8X/4X Slot.
• 1 x PCI Slot.

On-Board EIDE:

2 x ATA133/100/66 IDE connectors supporting up to 4 IDE devices.

On-Board SATA

2 x Serial ATA connectors supporting 2 Serial ATA HDDs.

Integrated Super I/O:

• 1 x Floppy Port.
• 1 x PS/2 Mouse Port.
• 1 x PS/2 Keyboard Port.
• 1 x Gigabit LAN Port.
• 1 x Parallel Port. (via optional cable)
• 2 x Serial Ports.
• 8 x USB 2.0/1.1 Ports. (4 integrated, 4 via optional cables)
• Audio Ports.
• 2 x IEEE1394 Ports. (1 integrated, 1 via optional cable)

RAID:

2 x Serial ATA connectors supported by nVIDIA nForce3 250 Gb. (RAID0, 1, 0+1)

IEEE1394:

2 x IEEE1394 Ports. (1 integrated, 1 via optional cable)

AUDIO:

8-Channel C-Media Audio.

LAN:

Gigabit LAN Function.

BIOS:

• Award BIOS.
• Flash Memory for easy upgrade.

Form Factor:

180mm x 270mm

Other Features:

• BIOS FSB Setting.
• BIOS Writing Protection.
• BIOS AGP, DIMM, Vcore Voltage Setting.
• BIOS Multiplier Setting.
• SmartDoc. Anti-burning Shield. (optional)
• RedStorm Overclocking Technology. (optional)
• Soltek H/M Monitor.
• STR Function.
